Automotive electrical system question please…

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
#1

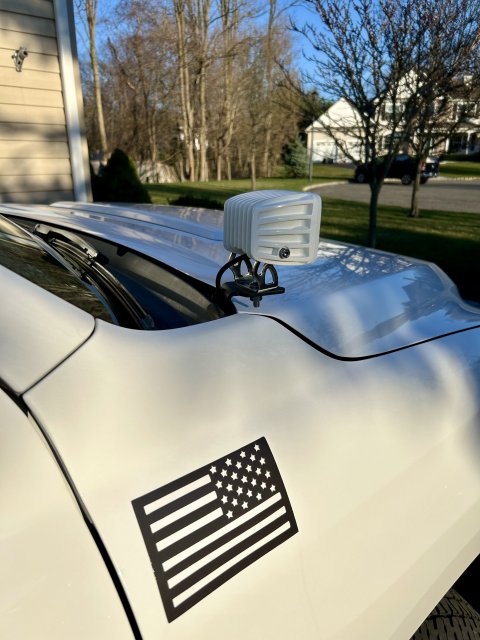

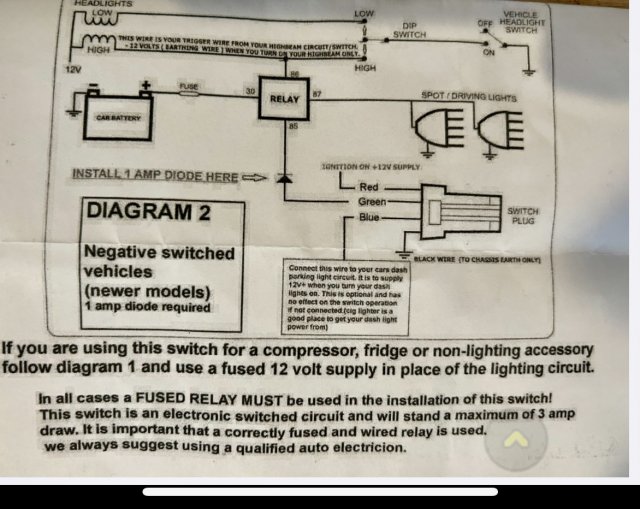

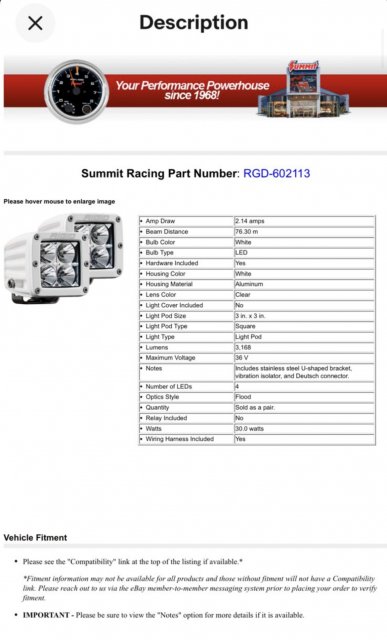

So I’ll start by saying wiring has always intimidated me as I don’t want to burn my vehicle down, or burn out my new lights. Also, pls excuse my lack or proper terminology. So, I’m looking to add these lights to my truck. They draw aprox. 2.25 amps, I bought a switch that resembles the oem switches in the truck, but this switch can only handle 3 amps. So i need a relay to handle the juice, and the switch tells the relay what to do. I think I’ve got that much right. Now looking at the diagram that came with the switch, I think I can figure most of it out. Relay pin 85, 87, and 30 are all self explanatory. Is 86 optional, and if so can I use a 3 pin relay? I’d prefer the lights didn’t go out with the brights on. Thanks.
IMG_8692.jpeg IMG_8693.jpeg



2ndAmend

1000 Posts Club
Premium Account
10 Second Best E/T
Member ID
#14483
Messages
1,917
Reactions
4,831
Likes
162
City
Seacoast
State
NH
Country
United States
Vehicle
20HCM6 22RENBS2
#2
Deleted, I was wrong. It happens, I'm old...



Last edited:
OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #3
Ok, so I’m reading that trigger wire phrase wrong. I would line to control the auxiliary lights independent of the rest of the system. Thanks 2ndA! An anyone else comment on the 3 pin question? Thanks all.



2ndAmend

1000 Posts Club
Premium Account
10 Second Best E/T
Member ID
#14483
Messages
1,917
Reactions
4,831
Likes
162
City
Seacoast
State
NH
Country
United States
Vehicle
20HCM6 22RENBS2
#4
STOP! IGNORE WHAT I SAID PREVIOUSLY!

86 connects the relay coil to ground when high beams are on. DO NOT SHORT 30 TO 86! Sorry.

85 provides 12v to the relay coil to turn on the lights.

When I do something like this, I buzz out the connections and relay, supply 12v where necessary to make sure I know what’s what.



OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #5
Ok, no prob, thanks for the correction. Can I get up and running on just a 3 pin relay, if I can find such a thing, and avoid 86 all together?



2fast4u

1000 Posts Club
Founding Member
Member ID
#1136
Messages
1,001
Reactions
2,516
Likes
162
City
Edwardsburg
State
MI
Country
United States
Vehicle
2018 Challenger Hellcat Widebody-DUMBO
#6
If you want them to work independent of the regular lights, ground 86 to body ground. Then your switch will control the on/off function of the relay. The way your diagram shows, lights would only function when on high beams.



OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #7
@2fast4u so I should buy a 4 pin relay, ground 86, and I’ll be good to go and will function as desired. Thank you. Do you know if there 3 pin relays available that eliminate the need to ground 86?



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
690
Reactions
1,744
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#8
pm your phone # I will call later this morning or any time you like an set you straight on how to wire that relay.



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,143
Reactions
15,741
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#9
Use a 4 pin relay and wire independent of vehicle light system is my advice.



Unholy707

5000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
5,421
Reactions
4,485
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
#10
Run power straight from the fuse box positive battery connection and ground in battery ground. Use an inline fuse as well with the relay



Unholy707

5000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
5,421
Reactions
4,485
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
#11
You can get really nice custom billet switches



Unholy707

5000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
5,421
Reactions
4,485
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
#12



Unholy707

5000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
5,421
Reactions
4,485
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
#13
Perfect for your lights.




2ndAmend

1000 Posts Club
Premium Account
10 Second Best E/T
Member ID
#14483
Messages
1,917
Reactions
4,831
Likes
162
City
Seacoast
State
NH
Country
United States
Vehicle
20HCM6 22RENBS2
#14
All the modern relays I have seen have a circuit diagram on the side. You need to simply connect the switch to provide 12v to one side of the coil and ground on the other. Then the coil will open/close the contacts connected to the other terminals.

A higher amp switch would be a simpler alternative.

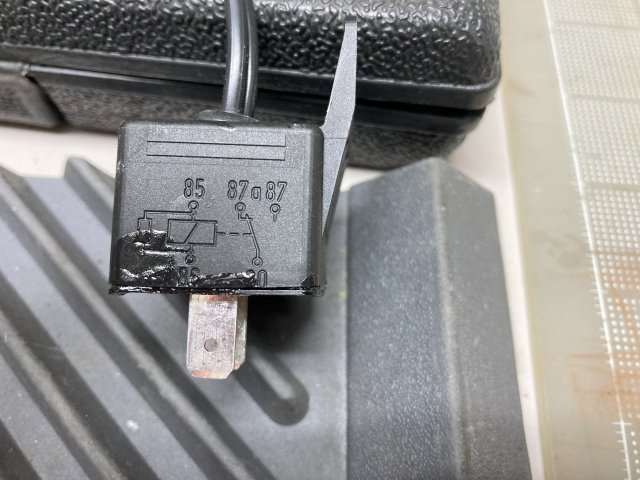

This is a 5-pin fuel pump relay I gutted to drain the fuel tank.



Attachments

OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #15

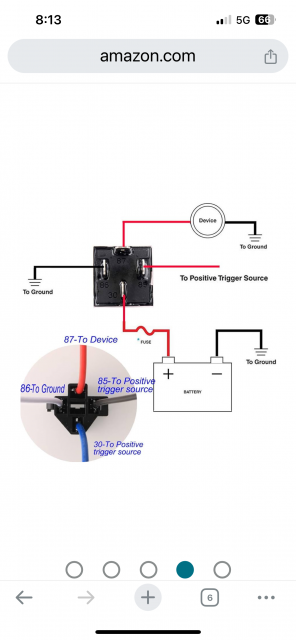

Guys, so if I use the relay below, pin 30 goes to battery + with fuse, pin 85 attaches to the green wire shown on the wiring diagram provided by the switch manufacturer seen in my original post, which should activate the relay, pin 86 gets grounded as I want these lights to function independent of the trucks lights, and lastly pin 87 goes to the positive on the lights themselves? Does this seem right? Currently, I have them hooked up and working with the higher amp switch provided by the light manufacturer, but I want the oem look. Switch however is only rated for 3A as mentioned earlier. Thanks for the offer @oilburner, I may take you ip on that later unless it can be made painfully obvious to me here! Thanks as always guys, I appreciate the help IMG_8694.png



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,317
Reactions
7,826
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#16
Guys, so if I use the relay below, pin 30 goes to battery + with fuse, pin 85 attaches to the green wire shown on the wiring diagram provided by the switch manufacturer seen in my original post, which should activate the relay, pin 86 gets grounded as I want these lights to function independent of the trucks lights, and lastly pin 87 goes to the positive on the lights themselves? Does this seem right? Currently, I have them hooked up and working with the higher amp switch provided by the light manufacturer, but I want the oem look. Switch however is only rated for 3A as mentioned earlier. Thanks for the offer @oilburner, I may take you ip on that later unless it can be made painfully obvious to me here! Thanks as always guys, I appreciate the help View attachment 134567
Correct above



OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #17
Excellent, thanks 16GoManGo.



2ndAmend

1000 Posts Club
Premium Account
10 Second Best E/T
Member ID
#14483
Messages
1,917
Reactions
4,831
Likes
162
City
Seacoast
State
NH
Country
United States
Vehicle
20HCM6 22RENBS2
#18
I agree. The photo is kinda screwed up. It shows two “positive trigger sources” . The circuit diagram looks correct showing only one “positive trigger source”.



OP
Old Mopar Guy

Old Mopar Guy

2000 Posts Club
Founding Member
Donating Member
HFCOTM
Member ID
#1198
Messages
2,380
Reactions
6,597
Likes
302
City
Long Island
State
NY
Country
United States
Vehicle
15 Hellcat Challenger
Thread Starter #19
@2ndAmend so I’m good with my description above? Just want to be certain. Thanks



oilburner

500 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1135
Messages
690
Reactions
1,744
Likes
132
City
coboconk
State
Non-US
Country
Canada
Vehicle
2016 challenger hellcat
#20
Guys, so if I use the relay below, pin 30 goes to battery + with fuse, pin 85 attaches to the green wire shown on the wiring diagram provided by the switch manufacturer seen in my original post, which should activate the relay, pin 86 gets grounded as I want these lights to function independent of the trucks lights, and lastly pin 87 goes to the positive on the lights themselves? Does this seem right? Currently, I have them hooked up and working with the higher amp switch provided by the light manufacturer, but I want the oem look. Switch however is only rated for 3A as mentioned earlier. Thanks for the offer @oilburner, I may take you ip on that later unless it can be made painfully obvious to me here! Thanks as always guys, I appreciate the help View attachment 134567
that pic is correct. 85 an 86 is the coil that creates the magnetism to close 30 an 87 which takes the load.
